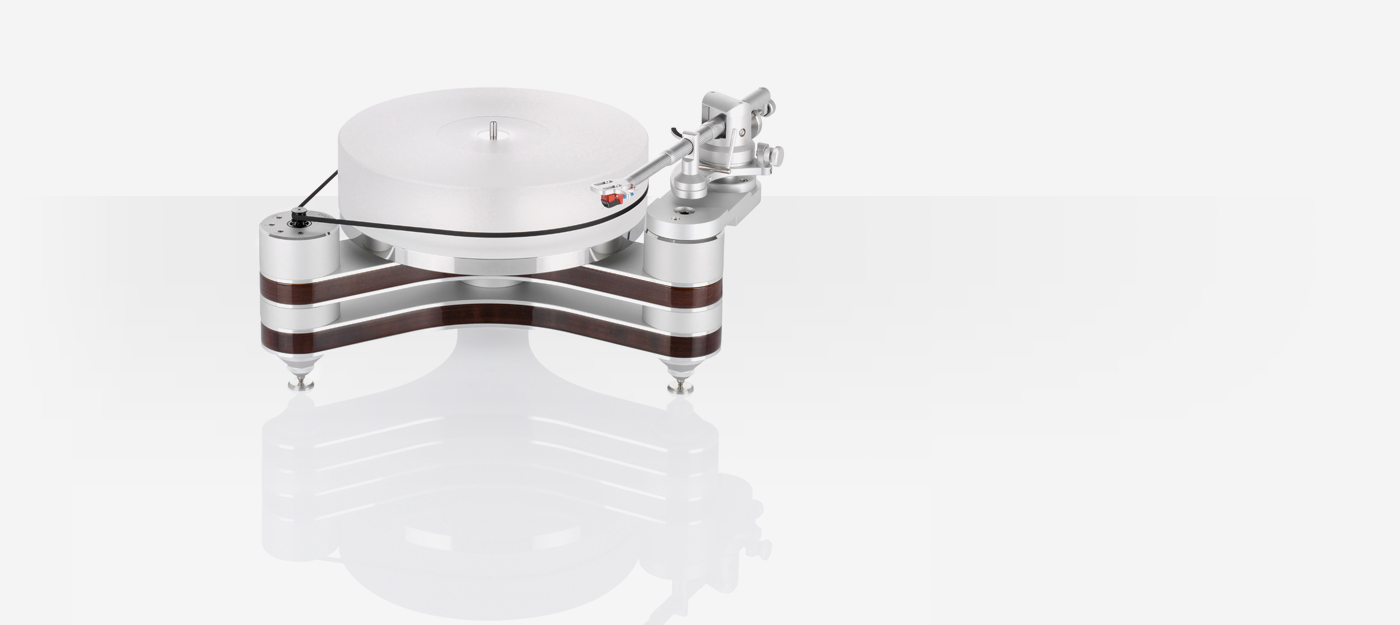

In the world of turntable construction the Innovation is the ultimate technological prototype.
An infrared sensor combined with Clearaudio's optical speed control (OSC) ensures an outstanding level of speed stability – a prerequisite for optimal listening. A high-torque decoupled DC motor effortlessly rotates the precision-machined 70mm-thick platter made of high-density acrylic. The platter rotates in a virtually frictionfree environment atop the 15mm-thick stainless steel sub platter, thanks to Clearaudio's patented ceramic magnetic bearing (CMB). A convenient choice of three rotational speeds is also at your fingertips, and it is possible to install a second tonearm.
Approx. 24 kg (without tonearm and power supply)
33 ⅓, 45 and 78 rpm
Available in black and wood chassis
| Construction principle | Resonance–optimised chassis shape, made of laminated wood and aluminium with precision CNC machined surface.
|
| Speed ranges | Comfortable speed change 33 ⅓ rpm, 45 rpm, 78 rpm |
| Drive unit |
|
| Bearing | Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter. |
| Platter | 70 mm / 2.75 inch main platter, made out of synthetic material with high density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub–platter, dynamically balance |
| Speed accuracy (measured) | < ± 0.05 % |
| Speed variation | < ± 0.01 % |
| Power consumption | Max. consumption: 9.3 Watt Consumption in operation: 2.5 Watt Standby mode: 2.5 Watt Off mode: 0.0 Watt |
| Total weight | Approx. 24 kg (without tonearm and power supply) |
| Dimensions (w/d/h in inches) | Approx. 18.11 x 19.09 x 8.66 (with tonearmbase, without tonearm) |
| Dimensions (w/d/h in mm) | Approx. 460 x 485 x 220 (with tonearmbase, without tonearm) |
| Warranty | 5 years* |
Measurement shows that Clearaudio's Innovation turntable and arm offers exceptional results and is a fine piece of engineering.
Clearaudio's new turntable powers the vinyl revival
High end heavyweight vinyl spinner with superlative levels of detail. Never flustered, it cuts to the musical choice in a characteristically Teutonic fussfree way.
