Innovation

Perfect synchronisation

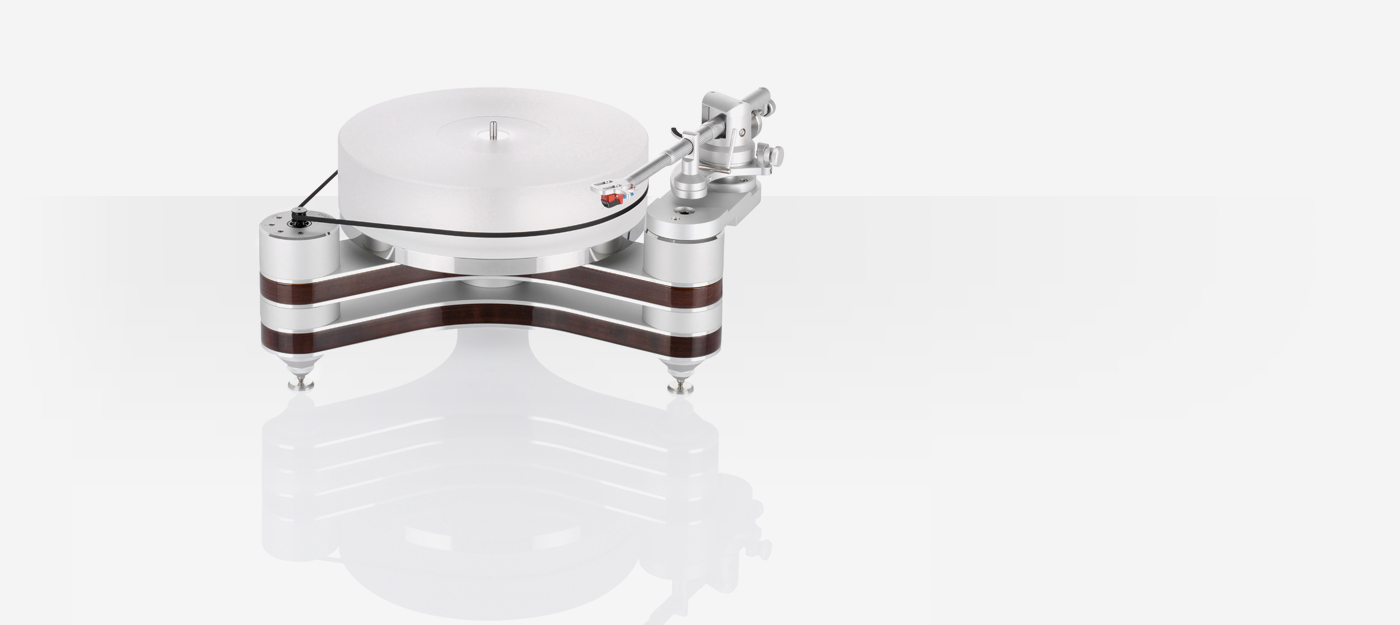

In the world of turntable construction the Innovation is the ultimate technological prototype.

share this product

Features

Product specifications

An infrared sensor combined with Clearaudio's optical speed control (OSC) ensures an outstanding level of speed stability – a prerequisite for optimal listening. A high-torque decoupled DC motor effortlessly rotates the precision-machined 70mm-thick platter made of high-density acrylic. The platter rotates in a virtually frictionfree environment atop the 15mm-thick stainless steel sub platter, thanks to Clearaudio's patented ceramic magnetic bearing (CMB). A convenient choice of three rotational speeds is also at your fingertips, and it is possible to install a second tonearm.

Total weight

Approx. 24 kg (without tonearm and power supply)

Dimensions

Width
18.11 inches
Depth
19.09 inches
Height
8.66 inches

(with tonearm base, without tonearm)

Speed ranges

33 ⅓, 45 and 78 rpm

Material/color

Available in black and wood chassis

Technical specifications
Construction details:
  • Resonance–optimised chassis shape
  • Made of bullet proof wood and aluminium with precision CNC machined surface
  • All turntable feet are finely adjustable
  • Playback with two tonearms possible
Speed options: 33 ⅓, 45, 78rpm
Drive unit:
  • High torque 24V DC motor exclusively made for Clearaudio; Optical Speed Control (OSC) in real time through infrared sensor
  • Decoupled DC motor in chassis; resonance damping device; belt-drive
Bearing: Clearaudio CMB ceramic magnetic bearing in main platter / upper drive platter assembly. Inverted bearing in lower drive platter.
Platter: 70mm / 2.75 inch main platter, made out of synthetic material with high-density and excellent dimension stability, precision CNC machined surface, solid stainless steel sub-platter, dynamically balanced
Speed accuracy (measured): < ± 0.05%
Power consumption: Max. consumption: 9.3 watts
Consumption in operation: 2.5 watts
Standby mode: 2.5 watts
Off mode: 0.0 watts
Total weight: Approx. 24kg (without tonearm and power supply)
Dimensions (W/D/H): Approx. 18.11 × 19.09 × 8.66 inches (with tonearm base, without tonearm)
Dimensions (W/D/H): Approx. 460 × 485 × 220mm (with tonearm base, without tonearm)
Manufacturer’s warranty: 5 years*
